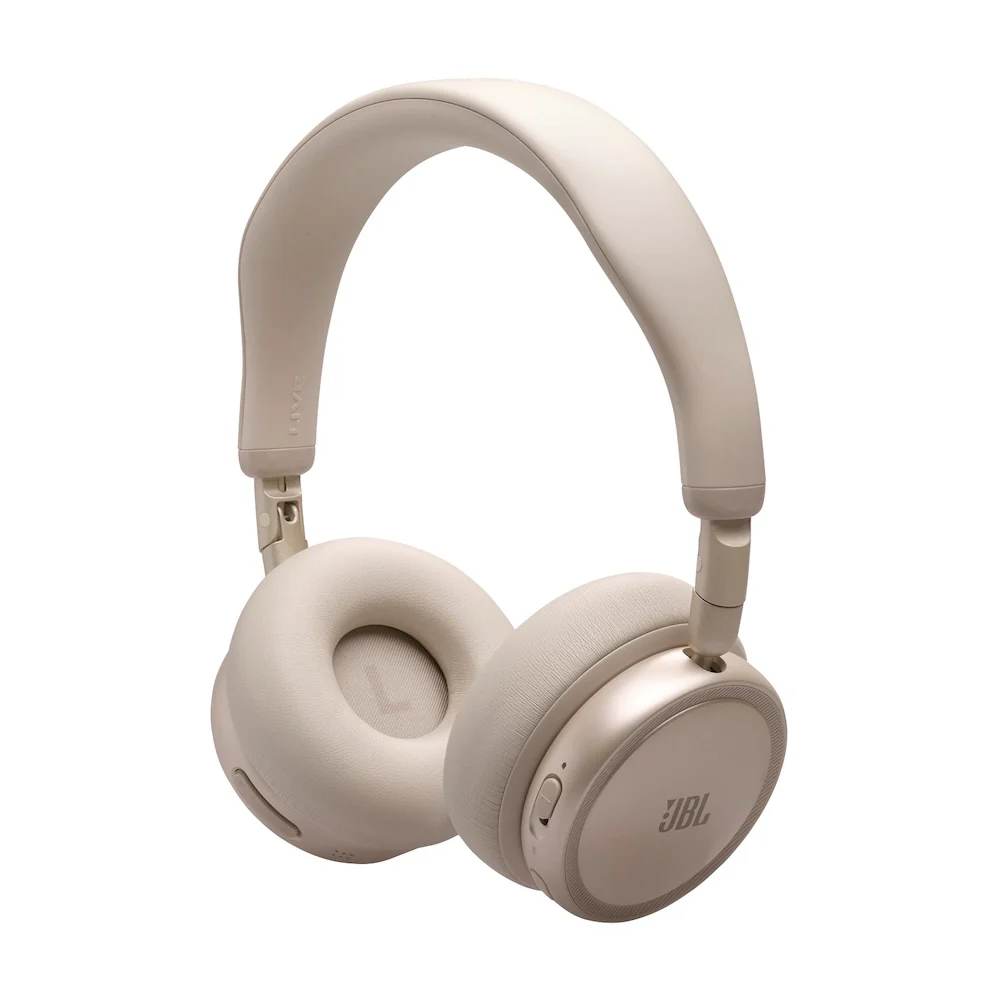

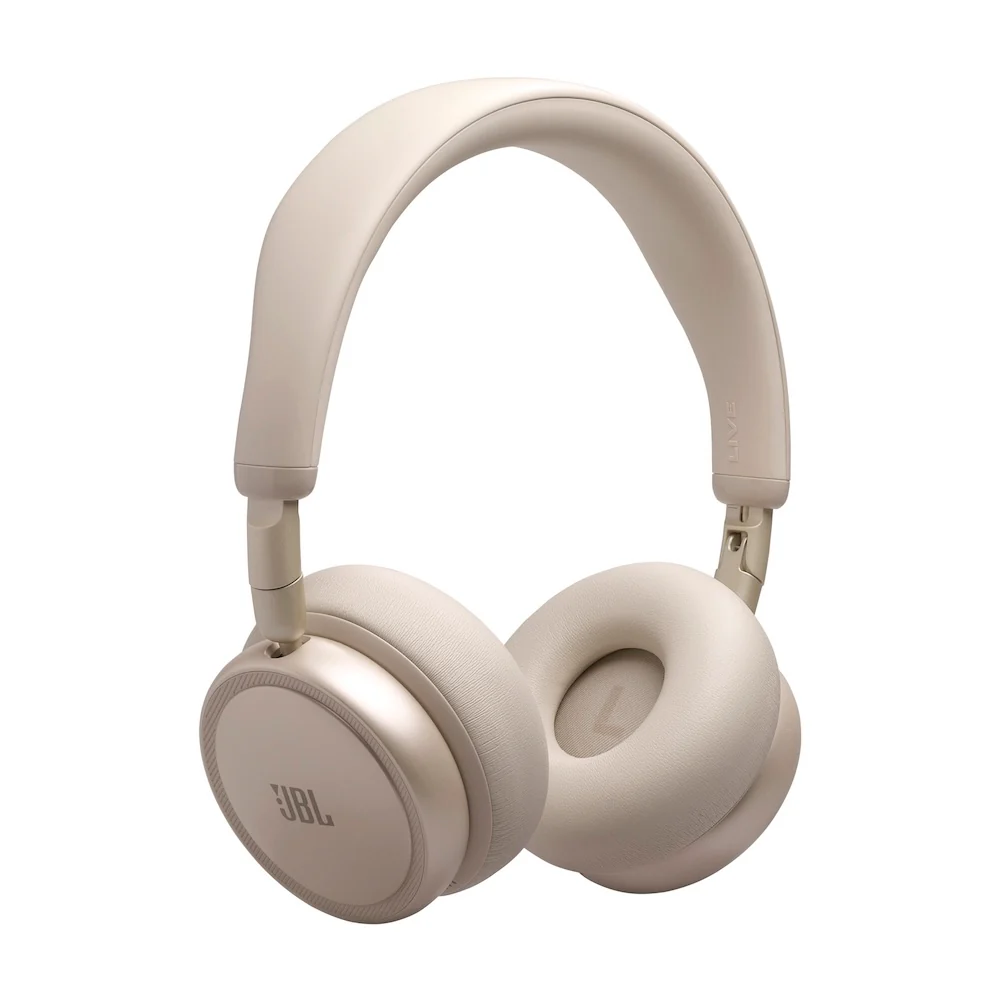

JBL Live 680NC Champagne

The JBL Live 680NC are wireless on-ear headphones featuring Hi-Res Signature Sound and Adaptive Noise Cancelling 2.0. They offer up to 80 hours of battery life, clear AI-enhanced calls, and a foldable, ergonomic design for all-day comfort. Customize your experience via the JBL app.

Technical Specification

General Specifications

• Driver size: 40 mm / 1.57’’ Dynamic Driver

• Power supply: 5 V ⎓1 A

• Maximum operating temperature: 40 °C


Audio Specifications

• Frequency response: 10 Hz - 40 kHz

• Impedance: 32 ohm

• Sensitivity: 98 dB SPL@1 kHz

• Maximum SPL: 95 dB

• Microphone sensitivity: -38 dBV/Pa@1 kHz


Control and Connection Specifications

• Bluetooth version: 6.0

• Bluetooth profile version: A2DP V1.4.0, AVRCP V1.6.3, HFP V1.9.0

• Bluetooth transmitter frequency range: 2.4 GHz - 2.4835 GHz

• Bluetooth transmitter power: < 13 dBm (EIRP)

• Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK


Dimension Specifications

• Weight: 231.16 g / 0.510 Ibs

• Ear cushion outer length: 74.5mm

• Ear cushion outer width: 74.5mm

• Ear cushion height: 22.85mm

• Ear cushion inner length: 31mm

• Ear cushion inner width: 31mm

• Audio cable length: 120cm


Battery Specifications

• Battery type: Lithium-ion battery
  (870 mAh / 3.7 V)

• Charging time: 2 hrs from empty

• Music playtime with BT on and ANC off: Up to 80 hrs

• Music playtime with BT on and ANC on: Up to 50 hrs

• Talk time with ANC off: Up to 33 hrs

• Talk time with ANC on: Up to 28 hrs

Compatibility

• Bluetooth Devices: The headphones feature next-gen Bluetooth® with LE Audio and can maintain a multi-point connection with two Bluetooth devices simultaneously.
  Wired Sources: They can connect to any 3.5 mm or USB-C source using the JBL Smart Tx (sold separately) or the included USB Type-C to analog 3.5mm cable.

• JBL Headphones App: Users can customize settings, sound profiles, and controls through this dedicated app.

• Auracast™: Supports audio sharing and broadcasts directly through the JBL Headphones app.
